How to Choose a Spindle Chiller

If your workshop uses CNC machines, you have probably noticed how much heat the spindle generates during operation. When this heat is not dissipated in time, machining accuracy, tool life, and product quality can all be affected.That is where a spindle chiller comes in. It helps you control the spindle temperature.

What is a spindle chiller, why do you need it, and how can you choose the right spindle cooling equipment for your application?This article will give you the answers.

What is a Spindle Chiller

A spindle chiller is an industrial refrigeration system specially designed for spindle cooling. It cools the coolant through refrigerant evaporation and uses a pump to deliver the cooled coolant to the spindle that needs temperature control.

After absorbing heat from the spindle, the coolant returns to the evaporator for cooling again.This forms a complete and closed chilled water circulation loop.

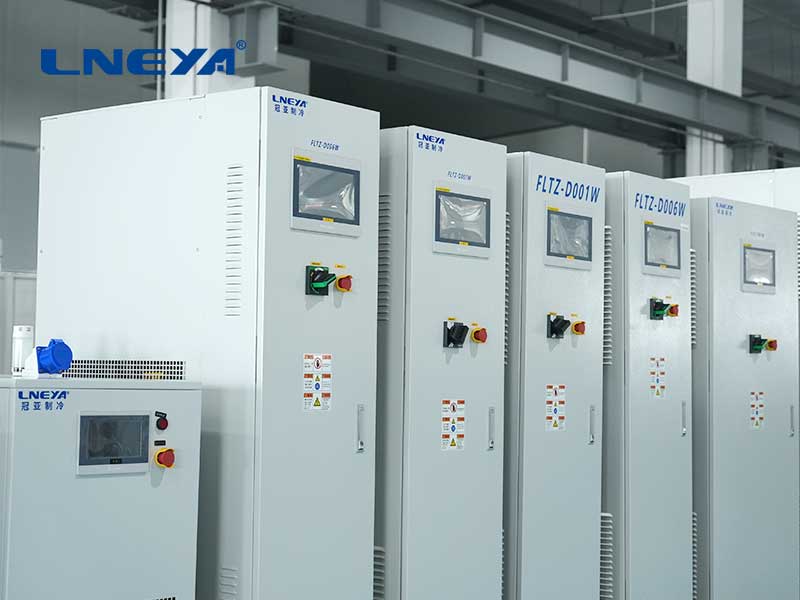

How to Choose a Spindle Chiller - air cooled chiller（images 1）

Why You Need a Spindle Chiller

The spindle is the core component of a machine tool that drives the cutting tool or workpiece to rotate at high speed. Supported by bearings and connected to the tool holder, it enables cutting, drilling, and milling. You can find it in CNC machines, engraving machines, and lathes.

The spindle’s rotational accuracy and temperature stability directly affect machining precision and product quality. During operation, the spindle rapidly accumulates heat from motor losses, bearing friction, and cutting energy conversion. This heat can change bearing clearance, cause dimensional deviation in machining, or even damage the bearings.

To prevent losses caused by heat buildup, a spindle chiller is an essential piece of high-precision cooling equipment.

How to Choose a Spindle Chiller

Cooling Capacity

The cooling capacity of a spindle chiller depends on how much heat your spindle generates during operation.

If the cooling capacity is too small, the chiller will run continuously at full load. This not only fails to meet the cooling demand but also accelerates compressor wear and shortens its service life.
If it is too large, it wastes energy and increases costs.

Our engineers recommend selecting a chiller that operates at about 60 to 80 percent of its rated capacity under normal conditions.

If you do not have accurate heat load data, you can estimate it based on spindle power. About 70 to 80 % of the spindle motor power is converted into heat. Therefore, a 10 kW spindle may require a 7 to 8 kW chiller.

Temperature Control Accuracy

The spindle’s temperature stability is a key factor affecting finished product quality. The higher the temperature control accuracy of the spindle chiller, the higher the machining precision of the CNC equipment.

Most chillers can maintain temperature within ±0.5°C, while precision models can achieve ±0.1°C or higher. The required temperature accuracy depends on your type of workpiece and machining process.

Type of Cooling

Spindle chillers are available in air cooled and water cooled types.

Air cooled chillers remove heat from the refrigerant using ambient air. They are easy to install and maintain but may struggle in hot or dusty workshop environments.

Water cooled chillers rely on a cooling tower to supply water for cooling the condenser. They perform more efficiently and stably under high loads or in high temperature environments but require additional piping and water treatment.

For small CNC machines, an air cooled chiller is usually more suitable. For large machining centers or multi spindle systems, a water cooled system provides more reliable long term operation.

Coolant Type

Different machines use different coolant circuits. Most spindle chillers use water, water ethylene glycol mixture, or thermal oil. The coolant type should be checked with the spindle manufacturer for compatibility.

Pure water provides the best heat transfer performance, but to prevent corrosion, it requires complex water treatment and regular quality checks.

Water glycol mixtures offer antifreeze and anti corrosion protection, making them suitable for factories in cold regions.

Thermal oil is more expensive and should be kept away from moisture, but it performs well in specific high temperature processes.

Environmental Conditions

The installation environment affects how the spindle chiller should be configured.

If it is installed in a dusty workshop, choose a unit with dust proof or washable condenser filters. If it is used near flammable materials or solvents, make sure to use explosion proof cooling equipment that complies with relevant safety standards.

Discuss Your Spindle Cooling Solution with LNEYA

LNEYA has specialized in industrial temperature control for 15 years and provides both standard and customized spindle cooling solutions.

Our LT, SUNDI, and FLTZ series are particularly suitable for cooling CNC machining centers, laser equipment, and precision tools.

If you are facing temperature control challenges, contact our team to get a reliable and efficient cooling system tailored for your application.
