or Thermal Plate PCB
MD series thermal chuck can be used as a DUT cooler for RF device and high-density power device testing, and can also be used for laboratory plate rapid cooling (plasma, biological products, batteries), etc.

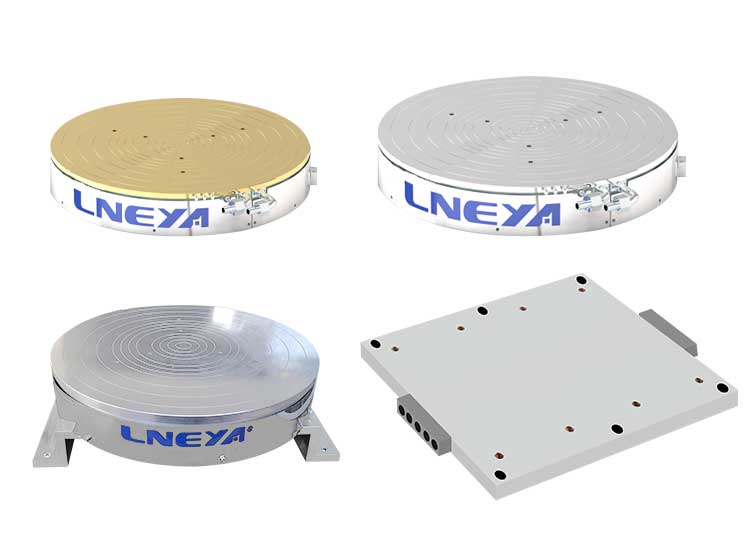

MD SERIES
lowest
Highest
Temperature control accuracy
| Model | MD-708 | MD-712 | MDL-708 |
| Temp range | -75℃～225℃ | -75℃～225℃ | -75℃～225℃ |
| Plate temp uniformity | ±1℃ | ±1℃ | ±1℃ |
| Flatness of the plate | ±15um | ±15um | ±15um |
| Plate size | 200mm diameter disc | 300mm diameter disc | 150mm*200mm |
| Host and card connection cable | 2.5m(Other lengths can be customized） | ||
| Flat surface treatment | Nickel plating (Optional gold plating) | ||
| Heating | -60°C to +25°C: 2 min 0°C to +25°C: 2 min +25°C to +220°C: 6 min |
||
| Cooling | 220°C to +25°C: 2 min +25°C to -60°C: 6 min |
||

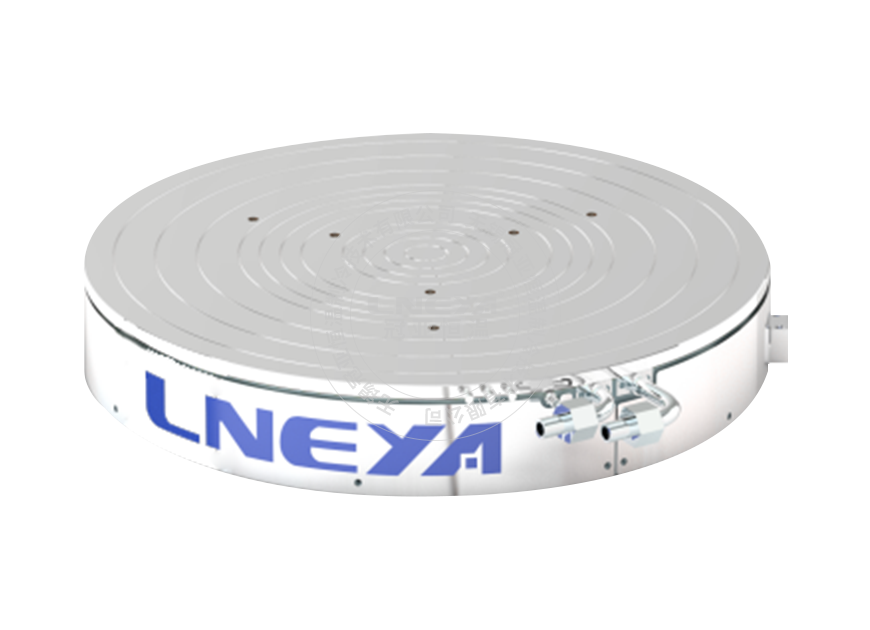

MD’s greatest innovation in thermal testing is the series of thermally controlled chucks, which are mainly used for performance testing, modeling, process development, design defect or IC failure analysis of semiconductor wafers. It can realize rapid temperature change and precisely control the temperature. The system itself has its own refrigerator, which avoids the consumption of liquid nitrogen, carbon dioxide, etc., and each system includes a chuck and a cold and hot control unit.

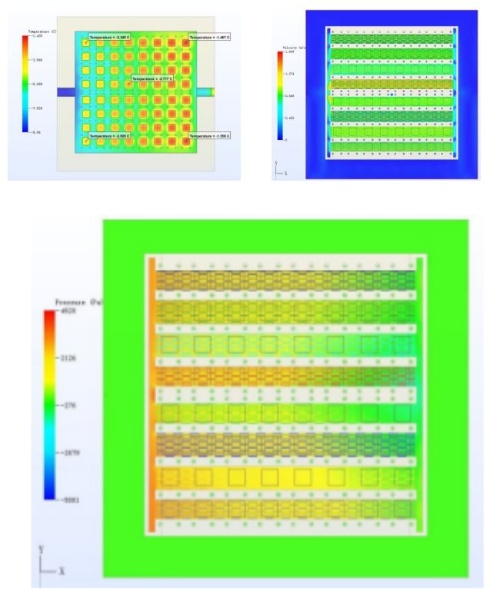

The inside of the plate adopts the direct evaporation method of refrigerant, which greatly improves the heat exchange efficiency and the heat exchange power per unit area of the plate compared with the liquid cooling method.
Thermal Chuck MD series provides an open flat surface working platform, rapid temperature rise and fall, and constant temperature control, which can be used for testing RF devices and high-density power devices (IGBTSAND MOSFETS), and can also be used for rapid cooling of laboratory flat panels (plasma, biological products, batteries), etc.
KDS -75℃~200℃
Heating cooling rate Up to 50 ℃/min
Temperature Accuracy ±0.2℃
ZLJ & SLJ -150℃～-110℃
Cooling capacity 0.4kW~11kW
temperature accuracy ±1℃
MD -75℃～225℃
Heating & Cooling -60°C to +25°C: 2 min &+25°C to -60°C: 6 min
temperature accuracy ±0.5℃
