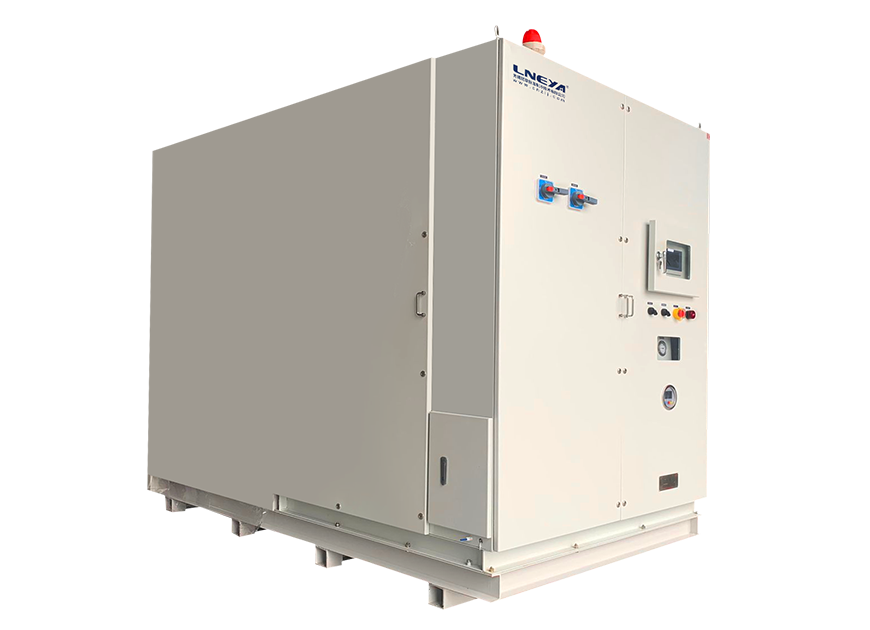

One host can independently set and control the temperature of two channels and is equipped with an explosion proof touch screen, which is more convenient and safer.
lowest
Highest
Temperature control accuracy
Medium & Material
Contact LNEYA sales engineer
for catalog or price.
| Model | WTD-2A38W-2TPEX | WTD-4A38W-2TPEX | WTD-7A50WPEX | |||
| Temp Range | -25～200°C | -25～200°C | -45～200°C | -45～200°C | -70～200°C | |
| Temp resolution | 0.1K | |||||
| System circulation fluid | 30L+30L | 30L+30L | 50L | |||
| Expansion tank volume | 120L | 120L | 100L | |||
| Heating capacity | 38kW | 38kW | 38kW | 38kW | 50kW | |
| Cooling capacity kW | 200°C | 38kW | 38kW | 38kW | 38kW | 50kW |
| 100°C | 38kW | 38kW | 38kW | 38kW | 50kW | |
| 20°C | 38kW | 38kW | 38kW | 38kW | 50kW | |
| -15°C | 15kW | 15kW | 20kW | 20kW | 40kW | |
| -35°C | 11kW | 11kW | 25kW | |||
| -60°C | 12kW | |||||
| Circulation pump max | 250L/min 3bar | 250L/min 3bar | 250L/min 3bar | 250L/min 3bar | 250L/min 3bar | |
| Low voltage electrical | Schneider/Siemens | |||||
| Power 380V 50HZ | 110kW MAX | 125kW MAX | 120kW MAX | |||
| Explosion-proof form | Positive pressure explosion-proof, Explosion proof product installation license No. PCEC-2017-B025 | |||||
Synthetic heat transfer oil
Voltage regulating actuator 4~20mA control
Double tube heat exchanger
Centralized control
WTD dual-channel explosion proof chiller can control multiple flow channels with one host. You can remotely monitor the inlet and outlet liquid temperatures of multiple channels through a system. This centralized control not only improves operating efficiency, but also optimizes fault diagnosis and operation procedures.
OEM support
LNEYA has a 25,000 square meter factory in Wuxi, China. We are a chiller manufacturer that can develop, design and produce by ourselves. All our products support OEM. You can customize the chiller’s size, temperature range, cooling capacity, heating capacity, expansion tank volume, cooling water flow, accessory brand, explosion-proof form, etc.
Chemical Processing
In the chemical processing industry, explosion proof chillers are often used for cooling reactors, storage tanks, and processes involving flammable solvents or chemicals.
Oil and Gas
In oil and gas extraction, the temperature of flammable gases in refining and drilling operations needs to be controlled within safe ranges.
Pharmaceuticals
In the pharmaceutical industry, the temperature of solvents or other hazardous compounds used in drug manufacturing needs to be precisely regulated.
Cooling capacity 2.1kW~15kW
Heating power 3.5kW~15kW
Medium temp accuracy ±0.5℃
Material temp accuracy ±1℃
Cooling capacity 1.8kW~200kW
Heating power 3.5kW~200kW
Medium temp accuracy ±0.5℃
Material temp accuracy ±1℃
Cooling capacity 0.25kW~200kW
Heating power 2.5kW~200kW
Medium temp accuracy ±0.5℃
Material temp accuracy ±1℃
Cooling capacity 0.25kW~60kW
Heating power 2.5kW~60kW
Medium temp accuracy ±0.5℃
Material temp accuracy ±1℃
Cooling capacity 0.3kW~80kW
Heating power 3kW~80kW
Medium temp accuracy ±0.5℃
Material temp accuracy ±1℃
Cooling capacity 0.5kW~80kW
Heating power 5.5kW~80kW
Medium temp accuracy ±0.5℃
Material temp accuracy ±1℃
Cooling capacity 0.7kW~80kW
Heating power 5.5kW~80kW
Medium temp accuracy ±0.5℃
Material temp accuracy ±1℃
Cooling capacity 0.4kW~1.5kW
Heating power 2kW
Medium temp accuracy ±0.5℃
Material temp accuracy ±1℃
Our process chillers are made of high-quality materials, and all material suppliers undergo strict assessments.
Warranty: We provide free warranty within 1 year and lifetime maintenance services.
Served more than 30,000 customers.
Exported to more than 20 countries.
Has obtained CE certification, SGS certification, ISO certification.
Provide comprehensive technical training.
With 24/7 solutions.
Founded in 2010, with 15 years of industry experience.
20% of employees are technicians.
Visual inspection.
Performance test.
Electrical safety test.
