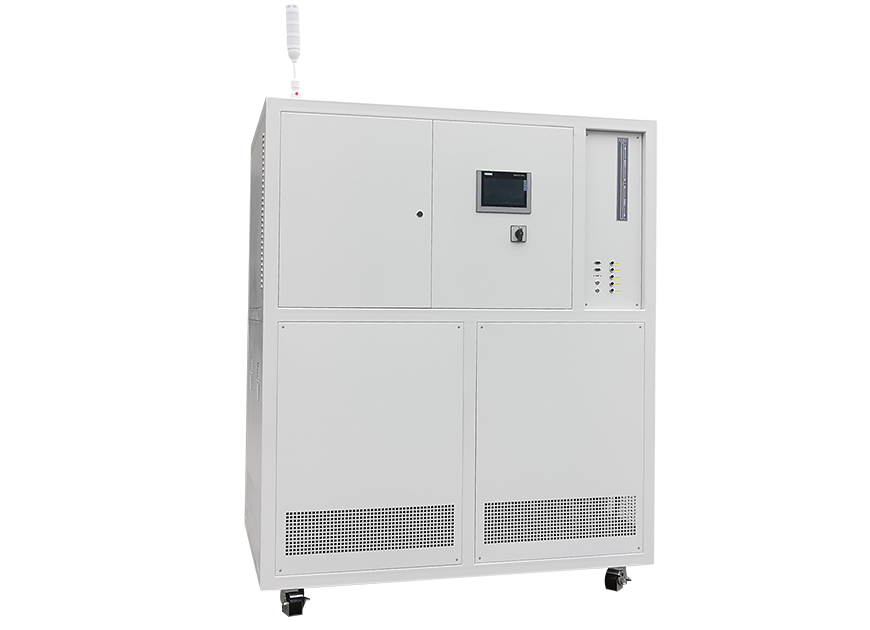

Six-channel chiller

KRY 0℃~100℃ six-channel chiller

Cooling capacity 25kW~60kW
Circulation Pump MAX
2~25L/min 0.2~2.5bar
Temperature accuracy ±0.3℃
Power AC380V/ AC460V

KRY 0~100 six-channel chiller adopts water cooled type. The temperature of this six channels is uniform, but the flow rate and pressure are controlled independently. If your industry need to control temperature, flow rate and pressure simultaneously, LNEYA support customization for you. Its temperature control accuracy is around 0.3℃. The flow control accuracy of each channel is around 0.2L/min. The pressure control of each channel is 0.2bar~2.5bar. The centrifugal pump KRY 0~100 six-channel chiller uses can be optionally equipped with magnetic drive pump.

Six-channel chiller

0°C

lowest

100°C

Highest

±0.3°C

Temperature control accuracy


Model KRY-A25W/6S KRY-A38W/6S KRY-A60W/6S
Temp Range 0℃~+100℃
Flow control accuracy/Group 2~25 L/min 2~25 L/min 2~25 L/min
Flow rate accuracy/group ±0.2L/min
Number of fuid output groups 6 groups 6 groups 6 groups
Pressure control/group 0.2bar~2.5bar 0.2bar~2.5bar 0.2bar~2.5bar
Flow pressure description The unit can control the flow individually or separately. Need to control different solutions at the same time (customized)
Heating capacity 15kW 25kW 38kW
Cooling capacity 100℃ 25kW 38kW 60kW
20℃ 25kW 38kW 60kW
5℃ 18kW 27kW 42kW
Water-cooled type W @20℃ 6000L/H
DN32
9000L/H
DN40
15000L/H
DN50
Power 380V50HZ 38kW 55kW 82kW
Dimension cm 200*145*205 200*145*205 200*145*205

Temperature feedback

Temperature feedback PT100 (inlet temperature, outlet temperature)


Compressor

Highly, Mitsubishi, Panasonic and other compressors


Communication protocol

MODBUS RTU protocol RS485 interface



  • The interior of pipeline:internal structure of the pipeline Lneya’s automotive chiller uses is made of stainless steel SUS304, copper, ceramic, silicon carbide, silicone sealant and PTFE.
  • Touch Screen: The multifunctional image display presents comprehensive important data information, such as data, lines and annotations. The operation safety status is continuously monitored and visualized on the touch screen.
  • Shell Material: uses cold-rolled sheet powder coating RAL7035. The color of our automotive chiller is a light greyish-brown tone, taking into account both the requirements for rust prevention and aesthetics.

KRY -40℃~100℃
battery chillers

water-cooling & air-cooling
Heating capacity 2.5kW~60kW
Cooling capacity 1.2kW~60kW
Temp accuracy ±0.3℃

KRYZ -40℃~100℃
antifreeze cooler

water-cooling & air-cooling
Heating capacity 2.5kW~38kW
Cooling capacity 1.8kW~60kW
Temp accuracy ±0.3℃

KRY -40℃~100℃ Multi-channel
liquid cooling chiller

water-cooling & air-cooling
Heating capacity 7.5kW~25kW
Cooling capacity 1.8kW~25kW
Temp accuracy ±0.1℃

KRYZ -40℃~50℃
battery pack cooling system

Cooling capacity 0.5kW~10kW
Heating capacity 0.5kW~10kW
Temp accuracy ±0.5℃


KRYO 0℃~160℃
oil chiller

Heating power 15kW~38kW
Cooling capacity 12kW~38kW
Flow rate accuracy ±0.2L/min
Temp accuracy ±0.3℃

You can trust our portable chiller factory

We are a very powerful chiller supplier with our own factory and more than 20 years of experience in the field of temperature control

Our excellent workshop technology, strong factory manufacturing capabilities, and technical support and maintenance service coverage determine: whether you need fast cooling, high efficiency and energy saving, environmental protection, or other application scenarios such as temperature control, flow control, pressure control, etc., we have rich experience to help you determine the chiller that best suits you.

With rich experience and worry-free pre-sales and after-sales services, customers can trust us to provide unparalleled help to maintain the optimal performance and service life of the chiller. This further promotes the overall success and efficiency of their operations.

Global service

Served more than 30,000 customers.
Exported to more than 20 countries.

Certification patents

Has obtained CE certification, SGS certification, ISO certification.

After-sales service

Provide comprehensive technical training.
With 24/7 solutions.

Professional team

Founded in 2010, with 15 years of industry experience.
20% of employees are technicians.

Quality control

Visual inspection.
Performance test.
Electrical safety test.

In present, there are two methods for controlling flow rate and pressure in the market. One is to adjust the main path and bypass through a proportional valve, and the other is to control the variable frequency pump through a frequency converter. The proportional valve adjustment is generally applied in the normal temperature section and high-temperature section. This method is suitable for cases where the required response time is long, the flow control accuracy is not high (around 0.3L/min). If high-precision control, short response time and low-temperature resistance are required, the general proportional valve spool can not meet the requirements. The cost of imported high-precision proportional valves is high, and they are prone to leakage at low temperatures. The adjustment method of controlling the variable frequency pump through a frequency converter avoids the defects of the proportional valve.

The number of channels should be matched with the capacity.
Determine whether the cooling capacity of each channel of the channel chiller can meet the corresponding heat load requirements, and consider the possible future load increase. Select the appropriate number of channels and total cooling capacity.
Temperature range and accuracy you need:
Consider the low and high working temperatures that each channel of the channel chiller needs to reach, as well as the requirements for temperature control accuracy, to ensure that the performance parameters of the chiller meet the application requirements.
Independent temperature control function:
Multi-channel chiller should have the ability to independently adjust the temperature of each channel to adapt to different experimental or production process conditions.
Compatibility and connection method:
Select the appropriate model of the chiller based on the interface type and size of the equipment to be cooled, and confirm whether the pipeline connection is convenient and whether the medium (such as water or heat transfer oil) is compatible.
Control system and intelligence:
Understand whether the control system of the channel chiller is feasible, and whether it supports remote monitoring, program setting and other functions, to facilitate operation and management.
Protection mechanism:
Ensure that the channel chiller is equipped with various measures such as high and low pressure alarms, overheating protection, and anti-freezing protection to ensure the safety during the equipment operation process.
Maintenance and after-sales service:
Understand the daily maintenance methods of the channel chiller and the after-sales service commitment provided by the supplier, including warranty period, repair response speed and spare parts supply situation.
Installation space and environmental requirements:
Based on the actual layout of the laboratory or production site, select a suitable-sized multi-channel chiller and ensure that there is sufficient ventilation and heat dissipation space around it.

In summary, when purchasing a multi-channel chiller, it is necessary to evaluate various technical indicators, safety performance and subsequent service guarantees based on the specific application requirements and conditions.

*
*
