Industrial /Laboratory RECIRCULATING CHILLER

LT Fixed Frequency Series -80℃~+30℃

Accept Customized Outdoor and Indoor Type

Cooling Capacity±0.1℃
Cooling Power1.8kW~50kW
RefrigerantR-404A/R507C
Flow Pressure25L/min 1bar~250L/min 2.5bar
Power Supply1.5-50kW
Weight115kG~800kG

WhatsApp: 86 13912479193

WeChat 86 15152266993

Get recommendations and prices

Two types of chillers: air-cooling and water-cooling (W)

temperature accuracy is ± 0.5 ℃

Stable performance

capable of working continuously for 24 hours

Cooling Power High to 50kW

The temperature of the heat transfer liquid can be adjusted;
It adopts international famous brand compressors such as Aspara, Danfoss, Meiyoule and Copeland, and has stable performance and can work continuously;
User-friendly design, flexible and convenient;
Microcomputer temperature controller, temperature digital display, adjustment unit 0.1 degree, temperature range -5 ℃ to 35 ℃;
Use hot gas bypass to save energy and improve control accuracy;
Multiple fault alarms (over temperature alarm, sensor alarm, high pressure alarm, compressor overheat alarm);
Boot delay protection; all components are safely grounded;
The high performance circulation pump is guaranteed to run 24 hours a day.

The following are all standard model data sheets. LNEYA supports custom designs.

LT 10℃~30℃

Model		LT-1.5	LT-2	LT-3	LT-5
Model		LT-1.5W	LT-2W	LT-2W	LT-5W
Temperature range		10℃～30℃
Cooling capacity	15℃	3kw	6kw	8kw	14kw
Circulation Pump Flow MAX		30L/min 1.6bar	30L/min 1.6bar	30L/min 1.6bar	50L/min 2bar
Circulation Pump Flow MAX		Refrigerant		R-134A / R407C
Interface size		ZG3/4	ZG3/4	ZG3/4	ZG1

LT -25℃~30℃

Model		LT2-1.5	LT2-2	LT2-3	LT2-5
Model		LT2-1.5W	LT2-2W	LT2-3W	LT2-5W
Temperature range		-25℃～30℃
Cooling capacity	-15℃	1.5kw	2kw	3kw	5kw
Circulation Pump Flow MAX		30L/min 1.6bar	30L/min 1.6bar	30L/min 1.6bar	30L/min 1.6bar
Circulation Pump Flow MAX		Refrigerant		R-404A / R507C
Interface size		ZG3/4	ZG3/4	ZG3/4	ZG3/4

LT -45℃~30℃

Model		LT4-1.5	LT4-2	LT4-3	LT4-5
Model		LT4-1.5W	LT4-2W	LT4-3W	LT4-5W
Temperature range		-37℃～30℃	-45℃～30℃
Cooling capacity	-20℃	1.3kw	1.8kw	2.5kw	4.8kw
Cooling capacity	-35℃	0.7kw	1kw	1.4kw	2.5kw
Circulation Pump Flow MAX		30L/min 1.6bar	30L/min 1.6bar	30L/min 1.6bar	30L/min 1.6bar
Circulation Pump Flow MAX		Refrigerant		R-404A / R507C
Interface size		ZG3/4	ZG3/4	ZG3/4	ZG3/4

LT -60℃~-30℃

Model		LT6-1.5	LT6-2	LT6-3	LT6-5
Model		LT6-1.5W	LT6-2W	LT6-3W	LT6-5W
Temperature range		-60℃～-30℃
Cooling capacity	-40℃	1.3kw	1.8kw	2.5kw	4.8kw
Cooling capacity	-55℃	0.7kw	1kw	1.4kw	2.5kw
Circulation Pump Flow MAX		30L/min 1.6bar	30L/min 1.6bar	30L/min 1.6bar	30L/min 1.6bar
Circulation Pump Flow MAX		Refrigerant		R-404A/R23
Interface size		ZG3/4	ZG3/4	ZG3/4	ZG3/4

LT -80℃~-40℃

Model		LT8-1.5	LT8-2	LT8-3	LT8-5
Model		LT8-1.5W	LT8-2W	LT8-3W	LT8-5W
Temperature range		-75℃～-40℃	-80℃～-40℃
Cooling capacity	-60℃	0.7kw	1kw	1.4kw	2.5kw
Cooling capacity	-70℃	0.4kw	0.6kw	0.85kw	1.5kw
Circulation Pump Flow MAX		30L/min 1.6bar	30L/min 1.6bar	30L/min 1.6bar	30L/min 1.6bar
Circulation Pump Flow MAX		Refrigerant		R-404A/R23
Interface size		ZG3/4	ZG3/4	ZG3/4	ZG3/4

Rated test conditions: dry bulb temperature: 20°℃; wet bulb temperature: 16℃. Inlet water temperature: 20℃; outlet water temperature: 25°C
The data in this table is for reference only. Please refer to the unit nameplate parameters.
If you need special non-standard products, please contact us.

Configurations

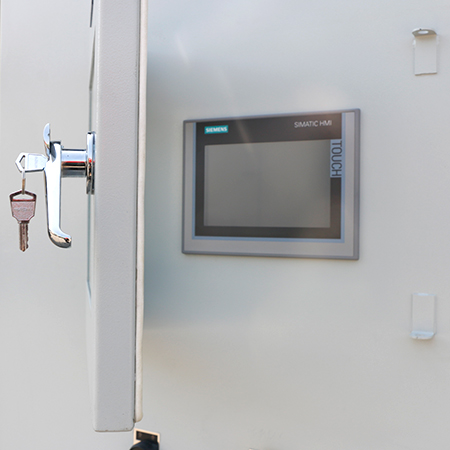

Temperature control		ASET multifunctional controller 4.3-inch touch screen
Temp control accuracy		±0.5℃
Temperature feedback		Temperature feedback PT100 (inlet temperature, outlet temperature)

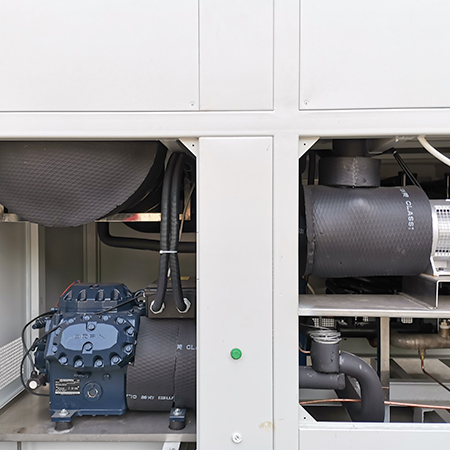

Compressor		Highly, Mitsubishi, Panasonic and other compressors
Evaporator		Plate Heat Exchanger

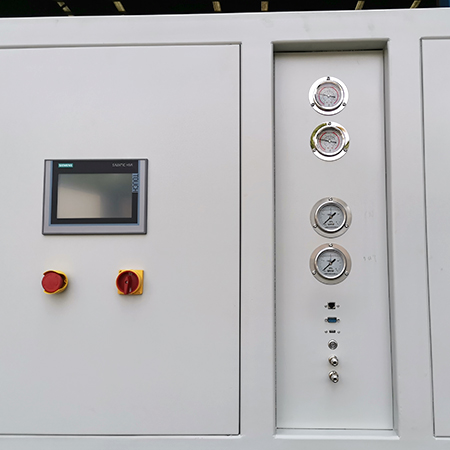

Operation panel		4.3-inch color touch screen displays set temp and measured temp, records temp curve, and exports data in Excel format
Safety protection		Self-diagnosis function; refrigerator overload protection; high and low pressure sensors, overload relays, thermal protection devices and other safety protection functions
Power		AC220V / AC380V/ AC460V
Shell material		Cold rolled sheet (REL7035)
Communication protocol		Communication protocol MODBUS RTU protocol RS485 interface

Working Principle

The entire working principle process can be roughly divided into three parts: water circulation system, refrigeration circulation system, and main control system. The water circulation system is also a part that directly reflects the function of industrial chillers. It transfers cold water to the equipment that needs to be cooled, absorbs the heat from the equipment, and then transfers it back. A refrigeration cycle system is the process of cooling cold water that absorbs heat. The refrigerant sublimates and then compresses, carrying the heat from the cold water outdoors for heat dissipation. The main control system is part of power control and internal structural component control.

Applications

Cooling of the hot part of the semiconductor manufacturing device:
Single wafer cleaning transfer, printing machine, automatic holder mounting device, spraying device, ion plating device, etching device, single wafer processing device, slicer, packaging machine, temperature management of developer, exposure device, heating of magnetic part Device, etc.

Cooling of the heating part of the laser device:
Laser processing, heat generation part of fusion splicer, laser marking device, generating device, carbon dioxide laser processing machine, etc.

Cooling of the heating part of other industrial machines:
Plasma welding, automatic packaging machine, mold cooling, washing machine, gold plating tank, precision grinding machine, injection molding machine, molding part of resin molding machine, etc.

Analyze the cooling of the hot part of the machine:
The light source of the electron microscope, the light source portion of the ICP emission spectroscopic analyzer, the heat generating portion of the spectrophotometer, the heat source of the X-ray analyzing device, the heat generating portion of the automatic pulse banner device, and the light source of the atomic absorption photometer.

Cooling of the cooling medium of CNC machine tools and machining centers.
